Features
. Available in Dia220*H52mm,Dia280*H52mm,Dia330*H52mm.
. Base and cover were made by Japan TEIJIN PC,best quality for the PC housings.

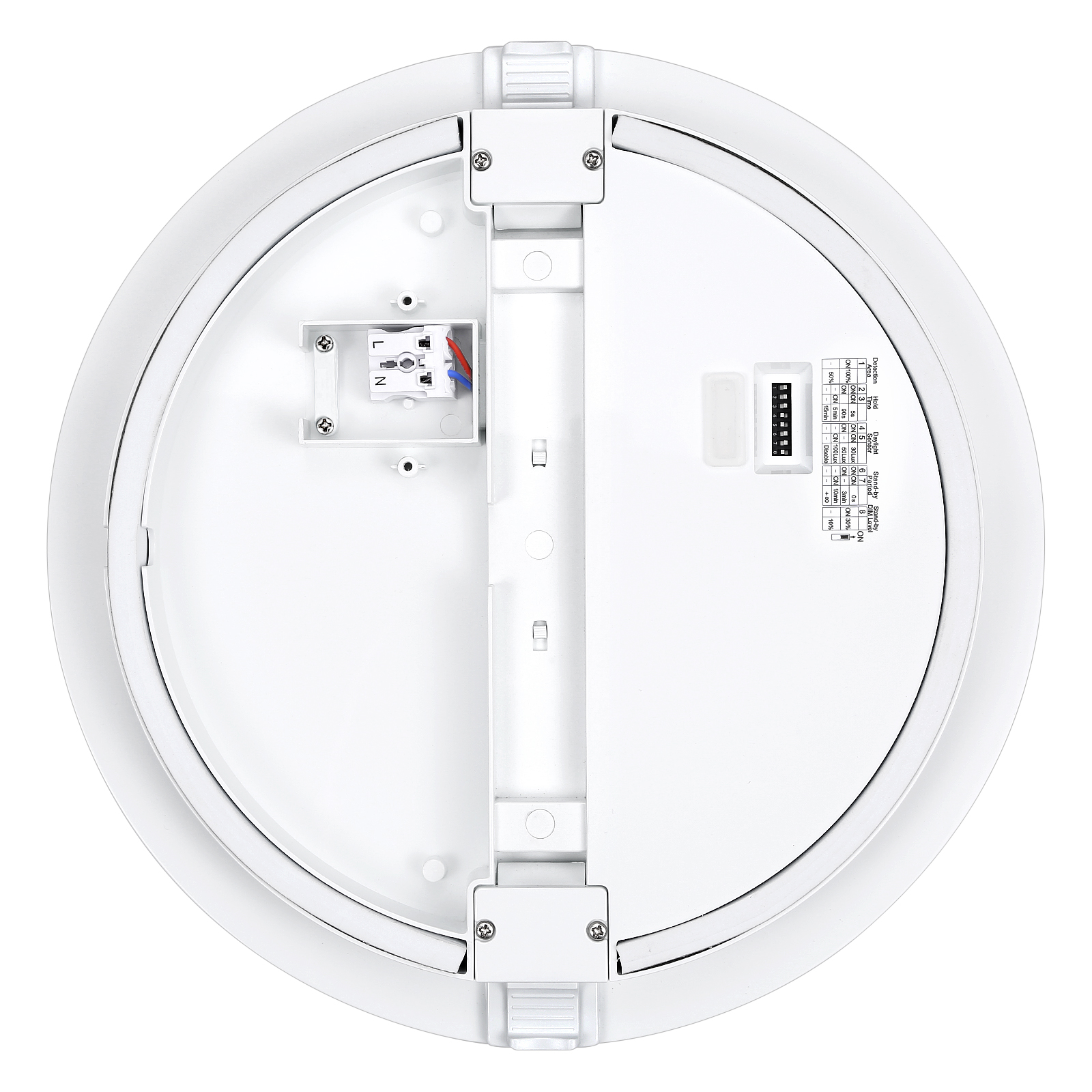

. Motion sensor corridor function,Dip switches on the backside,easy to make the settings.
. CCT change,and Power change.
. Patented spring clip design for fast installation.
. IP54,IK10,Ra85,SDCM<3,UGR<22,110Lm/W.
Inquiry
  • Detailed Description

Specifications

General information

Part No.: BL-ARR18PW-CS-V2

Power change: 13W,18W

Size: Dia280*H52mm

Input Voltage: AC230V

Power Factor: >0.95

CCT change: 3000K/4000K/6000K

CRI: Ra85

Lumen: 1430Lm,1980Lm

Beam angle: 120°

Dimmable: NO

IP grade: IP54

IK grade: IK10

Lifespan: 50000Hrs

Working Temperature: -40 - 50℃

Installing method: Wall mounted, Surface mounted

Packing size: 595*595*355mm/24PCS

Material: PC

Weight: 0.75KG/PC

Motion Sensor Corridor function
