1. Available in Dia220*H52mm,Dia280*H52mm,Dia330*H52mm.
2. Base and cover were made by Japan TEIJIN PC,best quality for the PC housings.

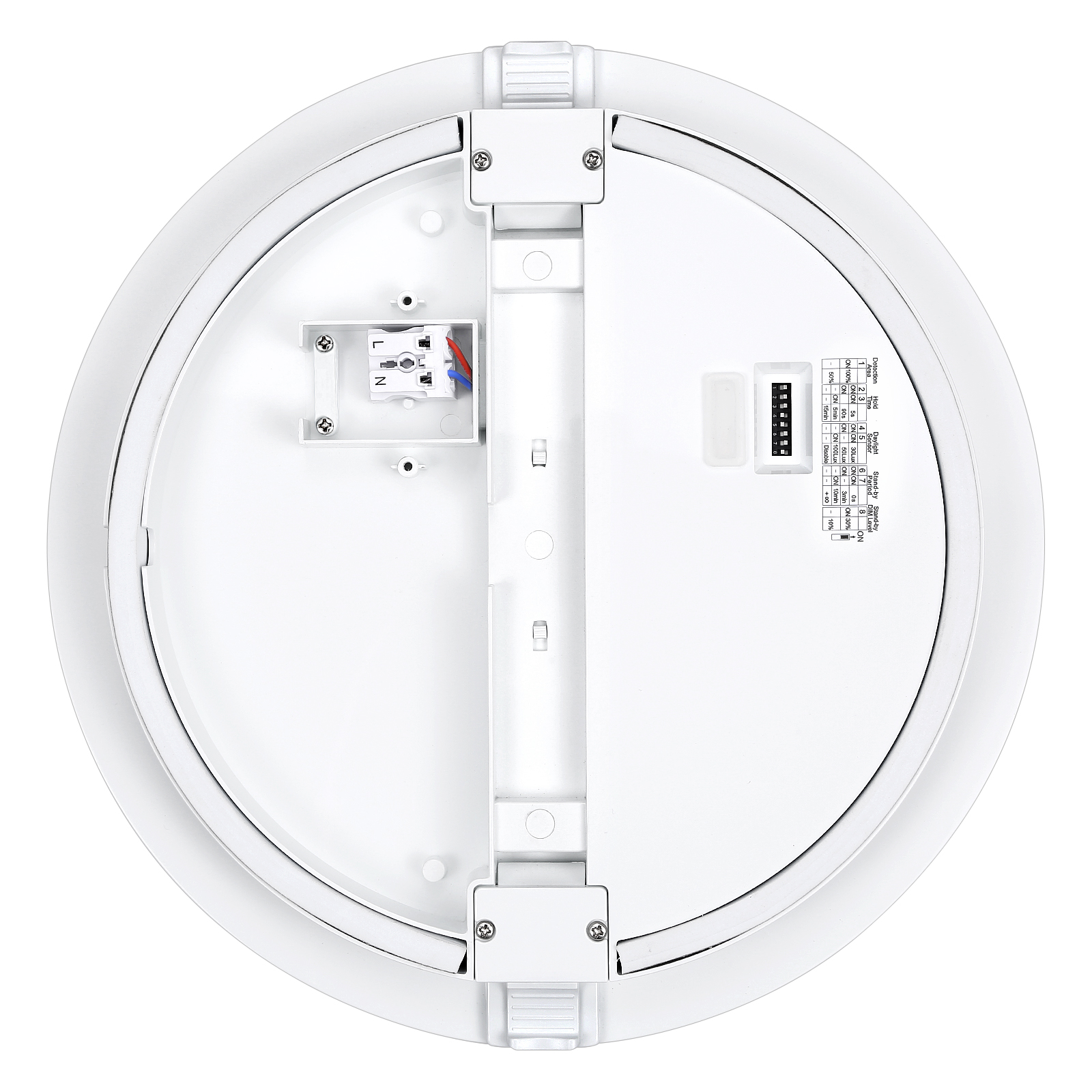

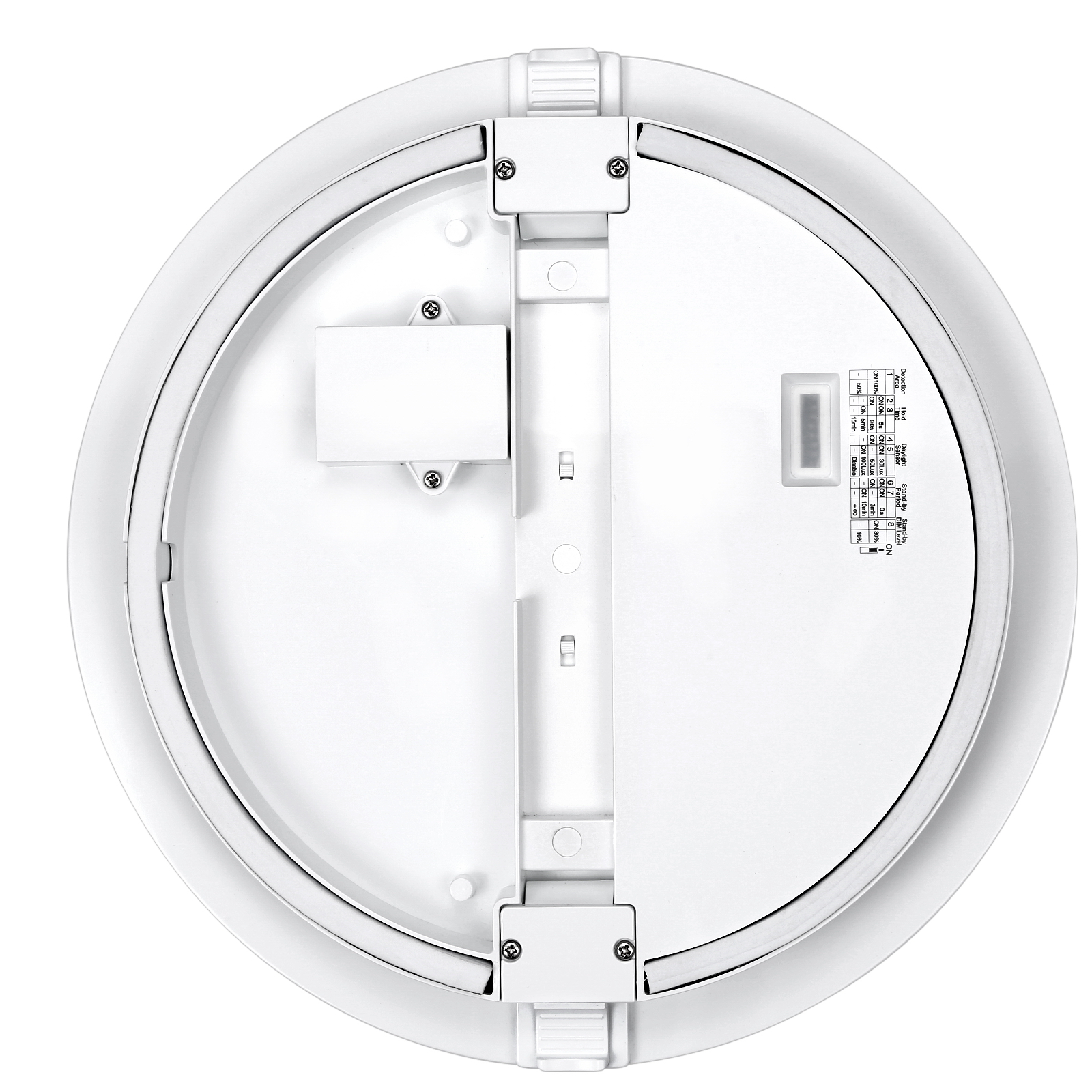

3. Motion sensor corridor function,Dip switches on the backside,easy to make the settings.
4. CCT change,and Power change.
5. Patented spring clip design for fast installation.
6. IP54,IK10,Ra85,SDCM<3,UGR<22,110Lm/W.
General information
Part No.: BL-ARR15PW-CS-V2
Power change: 10W,15W
Size: Dia220*H52mm
Input Voltage: AC230V
Power Factor: >0.95
CCT change: 3000K/4000K/6000K
CRI: Ra85
Lumen: 1100Lm,1500Lm
Beam angle: 120°
Dimmable: NO
IP grade: IP54
IK grade: IK10
Lifespan: 50000Hrs
Working Temperature: -40 - 50℃
Installing method: Wall mounted, Surface mounted
Packing size: 475*475*355mm/24PCS
Material: PC
Weight: 0.45KG/PC
Motion Sensor Corridor function
